Over 15 years experience of providing support of MEAN WELL Power Supplies

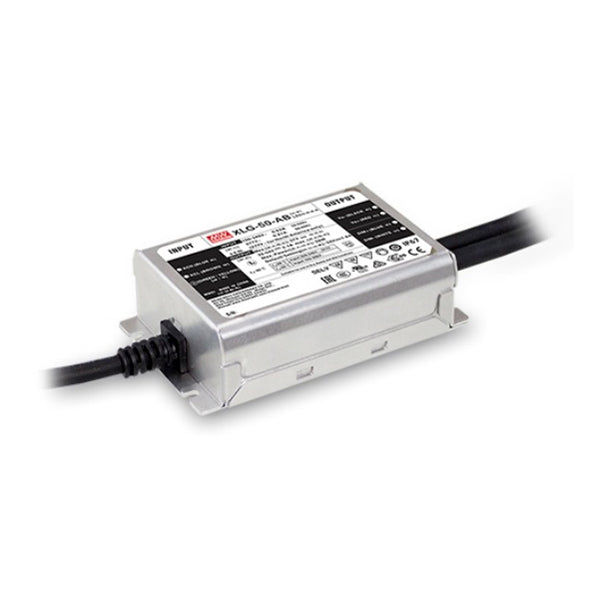

Mean Well XLG-50-A Power Supply 50W 1A - Adjustable
$35.40 NZD
Unit price /
Description
Description
Features
| Constant power mode output |
| Metal housing design with functional ground |
| Built-in active PFC function |
| Class 2 power unit |
| No old / standby power consumption <0.5W |
| IP67 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer 3 in 1 dimming function (Dim to off and Isolation design) |
| Lifetime > 50,000 hrs |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC;127~431VDC |
| AC inrush current | Cold start, 50A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Over-voltage protection | 64%~74% rated output voltage |
| Setup, rise, hold up time | 500ms, 100ms, 12ms |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC |
| Working temperature | -40~+90°C |
| Safety standards | UL8750 approved; ENEC AS/NZS IEC BS EN/EN61347-1; BS EN/EN62384; |
| EMC standards | EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11; NOM-058-SCFI-2017 approved |
| Dimension (LxWxH) | 105x63x30 |
| Packing | 24pcs / 10.5kg |
Specifications
Specifications
-
Length105 mm
-
Width63 mm
-
Height30 mm
-
Weight0.41 kg
File Downloads
File Downloads
::specification::
