Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

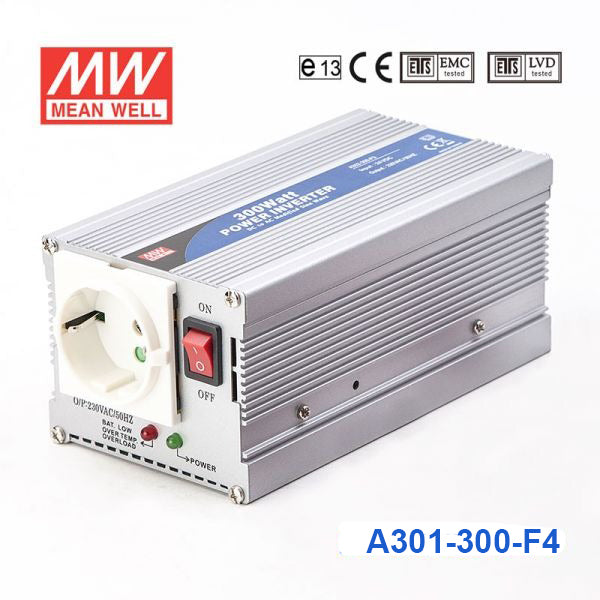

Mean Well A301-300-F4 Modified Sine Wave 300W 230V DC-AC Power Inve...
$46.00 NZD
Unit price /
Description
Description
Features
| 12V or 24V DC input |
| Power ON-OFF switch |
| Input voltage range: -15% ~ +25% |
| Output voltage regulation ±10% |
| Protections: Input reverse polarity/Bat. low shutdown/Over voltage/ Overload/Over temperature/Output short |
| Output waveform: Modified sine wave |
| Cooling fan ON-OFF control |
| Topology: Microprocessor |
| Approvals: E13 / EAC / CE / UKCA |
| 1 year warranty |
General Specification
| AC output voltage range | 110V |
| AC output waveform | Modified sine wave |
| Overload temperature | 45±5°C/ 113±9°F |
| Overvoltage | 125~142% load |
| Output short | Shut-off |
| Working temperature | 0 ~ 30°C@ 100% load, 40°C@ 50% load |
| Safety standards | EAC TP TC 004 approved |
| EMC standards | IEC61000-4-2,3, EAC TP TC 020 |
| Dimension (LxWxH) | 165*88*74mm |
| Packing | 16pcs / 19kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesA301/A302 Series
-
Power Rating300 Watt
-
Output Voltage230 Volt
-
Input Voltage10V~15V
-
No of Output1
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~30°C
-
Warranty1 Year
-
Length165 mm
-
Width88 mm
-
Height74 mm
-
Weight1.1 kg
