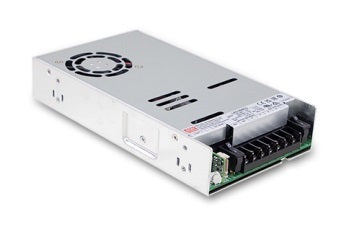

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well LAD-600CU Security/Fire Alarm PSU with Battery Charger/UP...
$158.83 NZD
Unit price /
Description
Description
Features
| Built-in battery charger and UPS function |
| TTL signals for status detection: AC OK, Battery disconnect, Battery reverse polarity, Battery low, Battery full and Discharge |
| Forced UPS mode for battery maintenance |
| Protections: Short circuit/Overload/Over voltage/Over temperature/Battery low voltage/Battery reverse polarity (No damage) |
| -20 ~ +60°C wide operating temperature |
| Output voltage adjustable (-2%~+5%) for CH1 by VR |
| Suitable for lead acid and lithium-ion batteries |
| Design refer to GB17945 system requirement |
| 1U low profile (30mm) |
| 3 years warranty |
General Specification
| AC input voltage range | 90 ~ 132VAC / 180 ~ 264VAC by switch 240 ~ 370VDC (Default switch at 230VAC) |
| AC inrush current | COLD START 60A/115VAC 60A/230VAC |
| Overload protection | CH1:105 ~ 135% CH2:90 ~ 110% |
| Over voltage protection | CH1:47 ~ 55V |
| Setup, rise, hold up time | 2000ms, 50ms/230VAC 2000ms, 50ms/115VAC at full load |
| Withstand voltage | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| Working temperature | -20~+60°C |
| Vibration | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes |
| Safety standards | UL62368-1, BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved; Design refer to GB 17945-2010 |
| EMC standards | EN55032 class B, EN61000-3-2, EN61000-4-2,3,4,5,6,8 |
| Dimension (LxWxH) | 225x124x41 |
| Packing | 1.02Kg; 12pcs/13.5Kg/0.78CUFT |
Specifications
Specifications
-
Length225 mm
-
Width124 mm
-
Height41 mm
-
Weight1.02 kg
