Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

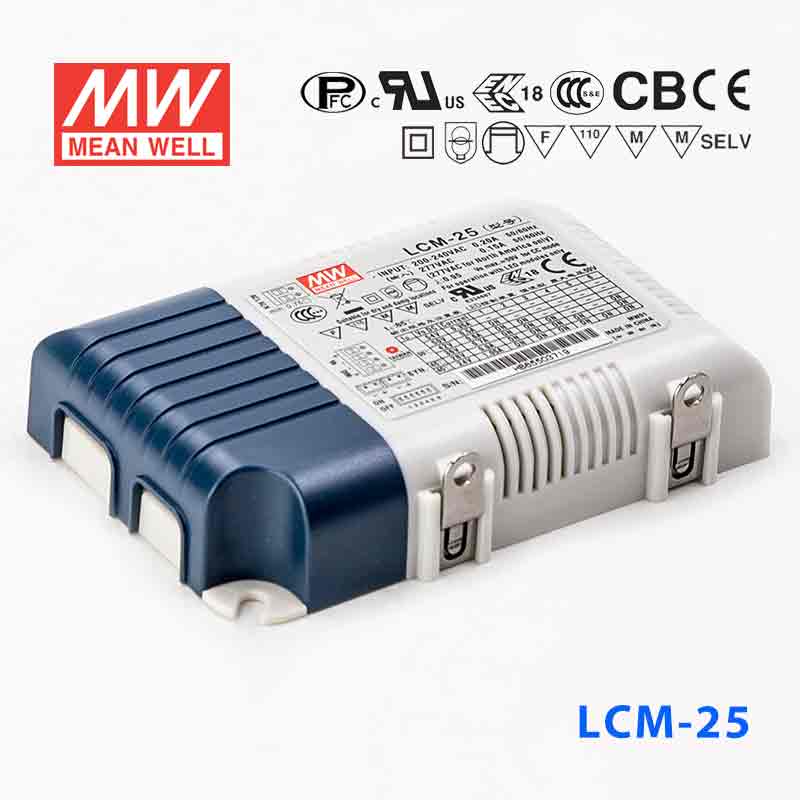

Mean Well LCM-25KN Power Supply 25W 350mA 500mA 600mA 700mA(default...
$90.13 NZD
Unit price /
Description
Description
Features
| Constant current mode output with multiple levels selectable by dip switch |
| Plastic housing with class II design |
| Built-in active PFC function |
| Standby power consumption<0.5W(EL) |
| Functions: 3 in 1 dimming (dim-to-off); synchronization up to 10 units |
| 3 years warranty |
General Specification
| AC input voltage range | 180~277VAC; 254~392VDC |
| AC inrush current (Typ.) | COLD START 20A(twidth=260μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
| Short circuit protection | Constant current limiting, recovers automatically after fault condition is removed |
| Over temperature protection | Shut down o/p voltage, recovers automatically after temperature goes down |
| Setup time | 500ms / 230VAC |
| Withstand voltage | I/P-O/P:3.75KVAC |
| Working temperature | Tcase=-30 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| Safety standards | ENEC EN61347-1, EN61347-2-13 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020 |
| Dimension (LxWxH)(mm) | 105*68*23mm |
| Packing | 72pcs/12.5Kg |
Specifications
Specifications
-
Length105 mm
-
Width68 mm
-
Height23 mm
-
Weight0.17 kg
