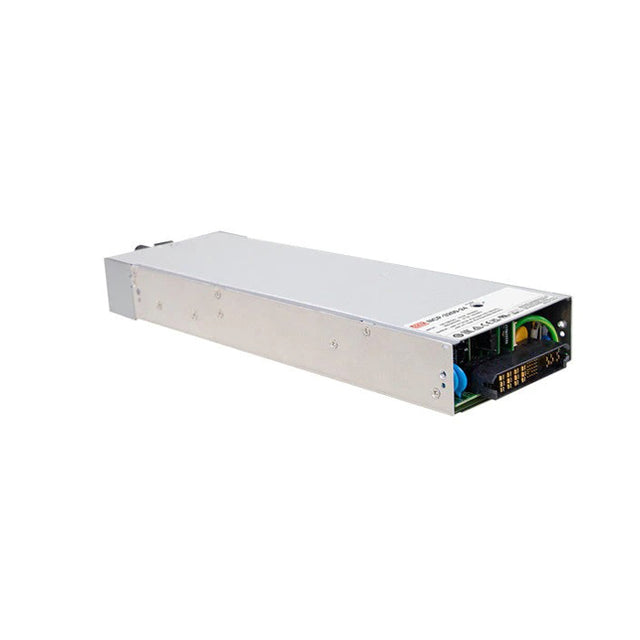

Mean Well NCP-3200-48 2-in-1 Rack Power Supply and Charger, 3192W 48V
power supply or charger mode selectable, high efficiency up to 94.5%, built-in programmable output voltage and current, maximum 40 units can be connected in parallel
SKU:
NCP-3200-48
$1,250.00 NZD
Unit price /
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NCP-3200-48 2-in-1 Rack Power Supply and Charger, 3192W 48V
$1,250.00 NZD
Unit price /
Description
Description
Features
| Universal AC input / Full range |
| Power supply or charger mode selectable by PMBus, CANBus or SBP-001(only for 24V/48V models) |
| Built-in 2/3 stage charging curves and programmable curve(Only for 24V/48V models) |
| High efficiency up to 94% |
| Built-in programmable output voltage and output current |
| Built-in OR-ing FET or Diode, support hot swap (hot plug) |
| Active current sharing up to 10 rack shelves and the maximum power supply that can be connected in parallel is 40 units |
| Support PMBus/CANBus protocol |
| Built-in intelligent fan speed control |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Design refer to SEMI F47 standard specification |
| 5 years warranty |
Specifications
Specifications
-
BrandMean Well
-
SeriesNCP Series
-
Power Rating3200 Watt
-
Output Voltage48 Volt
-
Rated Current133 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length325.8 mm
-
Width107 mm
-
Height41 mm
-
Weight2.3 kg
