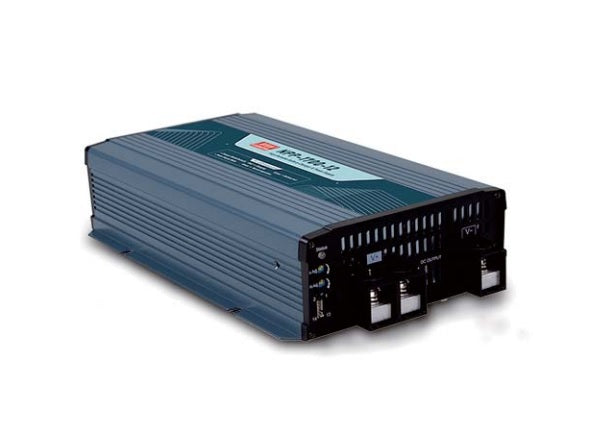

Mean Well NPP-1700-24 1680W 24V Battery Charge& Power Supply 2-in-1, Selectable via Jumper

NPP-1700's key features include ultra-wide output voltage, adjustable output voltage via VR on front panel (10.5~21V, 21~42V, 42~80V), adjust output current from 50~100%, built-in thermal controlled cooling fan to reduce noise, -30~+70°C operating temperature, built-in remote ON/OFF control, compliance to ITE IEC/EN/UL62368-1 and household appliances EN60335-1/-2-29 dual safety, multiple built-in intelligent protection functions, and 3 years warranty.

FEATURES

• Multi-function single unit battery charger or power supply operation modes selectable
• Ultra-wide output voltage (10.5~21V, 21~42V, 42~80V)
• Output voltage and current adjustable via potentiometer
• 3-stage charging curve for charging mode
• -30~+70oC wide operating temperature
• Thermal controlled DC fan for noise reduction
• Multiple protections: Short circuit / Over load / Over voltage / Over temperature
• Suitable for lead-acid or li-ion batteries
• Carry handle accessory available (Order No.: DS-Carry handle)
• Safety approval: CB, UL, DEKRA, EAC, CE, UKCA (62368-1 + 60335-1/-2-29)
• 3-year warranty
