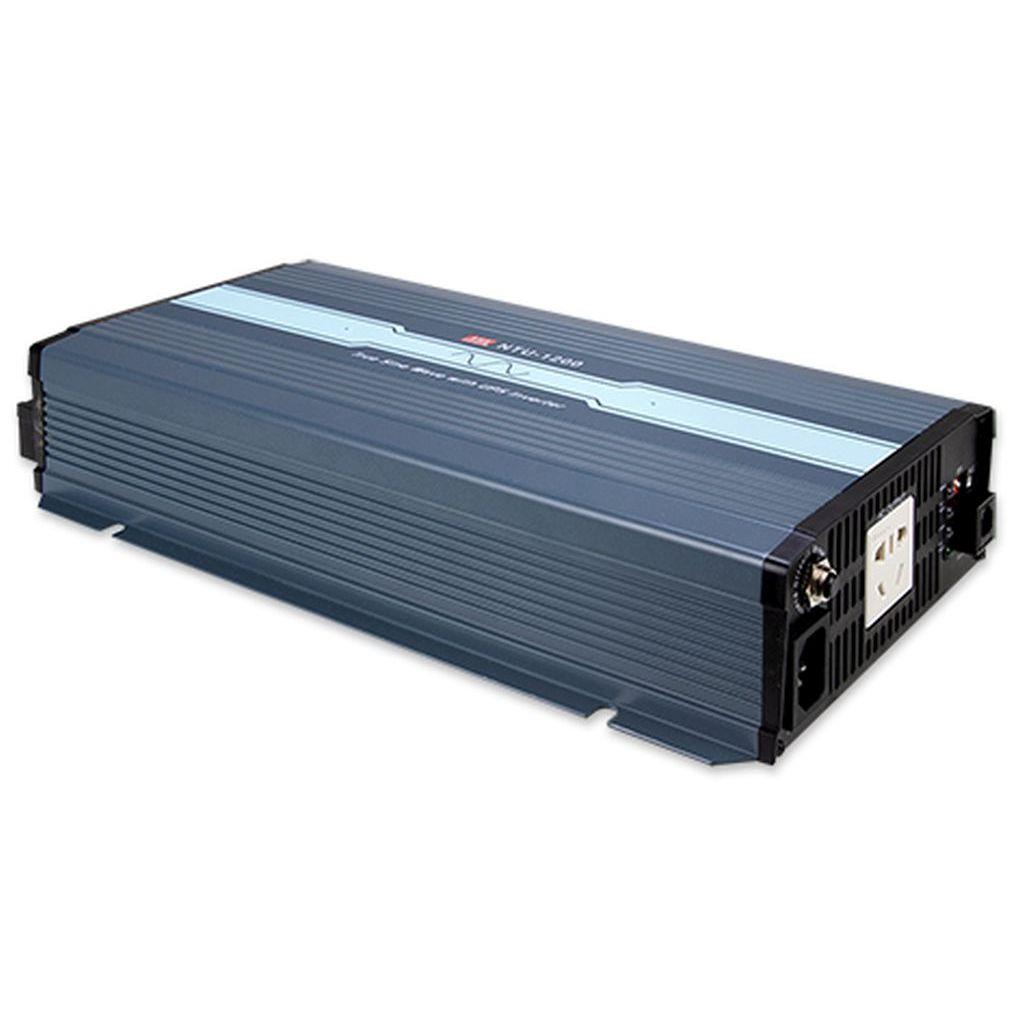

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well NTU-1200-248AU True Sine Wave DC-AC Inverter 1200W 230V out 12V in with AU Socket
built-in UPS function(AC by-pass), built-in dip switch to adjust AC output voltage, frequency and saving mode, can be remotely controlled by IRC controllers
SKU:
NTU-1200-248AU
$572.00 NZD
Unit price /
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NTU-1200-248AU True Sine Wave DC-AC Inverter 1200W 230V o...
$572.00 NZD
Unit price /
Description
Description
Features
| Built-in UPS function(AC by-pass) |
| True sine wave output (THD<3%) |
| High surge power up to 2000W |
| Temperature-controlled cooling fan |
| AC output voltage and frequency selectable by DIP S.W |
| Power ON-OFF remote control |
| Front panel indicators for operation status |
| Protections: Short circuit / Overload / Over voltage |
| Battery over-discharge protection(low voltage disconnect) |
| Support RS-232 communication |
| Suitable for lead-acid or li-ion batteries |
| Remote controller (IRC1, IRC2, IRC3 accessory sold separately |
| Support RS-232 communication(Communication cable order No.: DS-RJ11-RS232, sold separately |
| Carry handle accessory available(Order NO.: DS-Carry handle, sold separately |
| Conformal coating |
| 3 years warranty |
General Specification
| AC output voltage range | 100/110/115/120VAC;200/220/230/240VAC selectable by DIP S.W |
| AC output waveform | True sine wave, THD<3.0% |
| Overload temperature | Shut down o/p voltage, re-power on to recover |
| Overload | 105~115% load for 180s, 115~150% load for 10s |
| Withstand voltage | DC I/P - AC I/P:3.0KVAC, DC I/P - AC O/P:3.0KVAC, AC O/P - FG:1.5KVAC |
| Working temperature | -25~+70°C (refer to output derating curve ) |
| Safety standards | CB IEC62368-1 approved, Design refer to AS/NZS 62368.1 |
| EMC standards | EN55032 class A, BS EN/EN61000-4-2,3,4,5,6,8,11 |
| Dimension (LxWxH) | 333x184x70mm |
| Packing | 2pcs / 7.6Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesNTS Series
-
Power Rating1200 Watt
-
Output Voltage230 Volt
-
Input Voltage10V~16.5V
-
No of Output1
-
Standards MetCB,CE,cUL,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length333 mm
-
Width184 mm
-
Height70 mm
-
Weight3.3 kg
