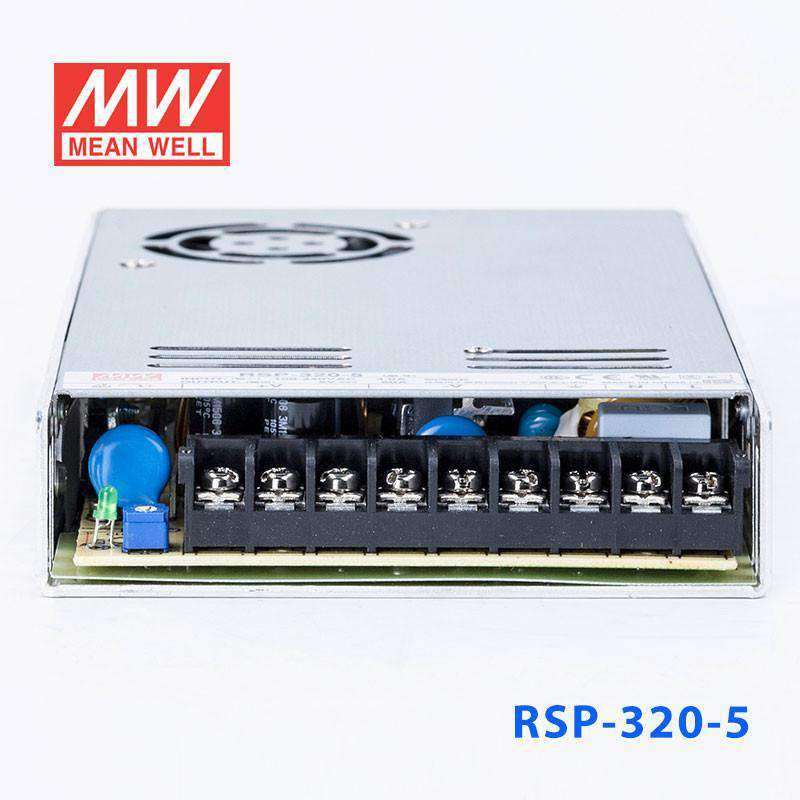

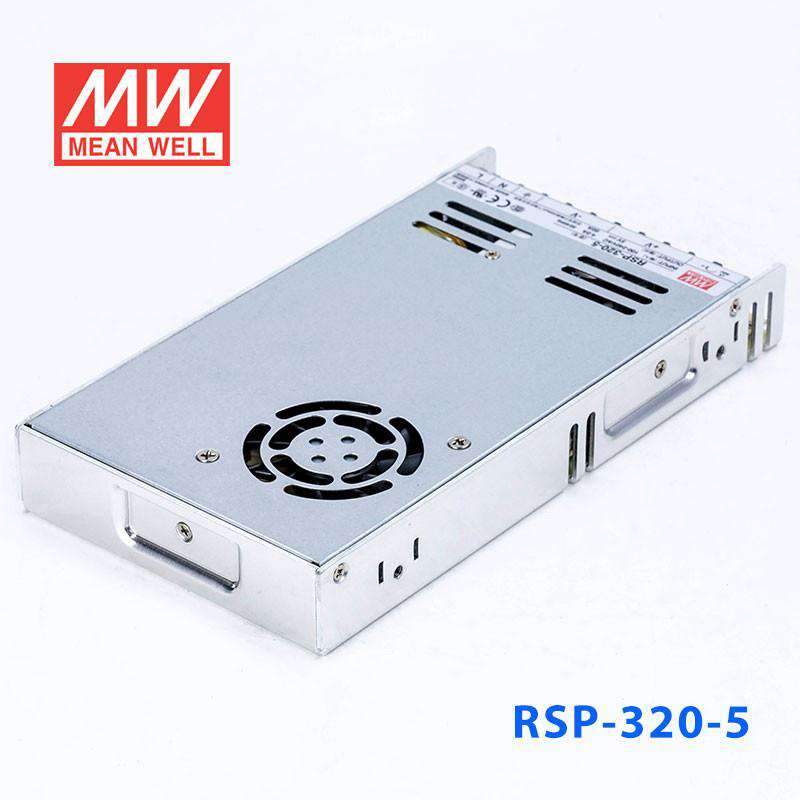

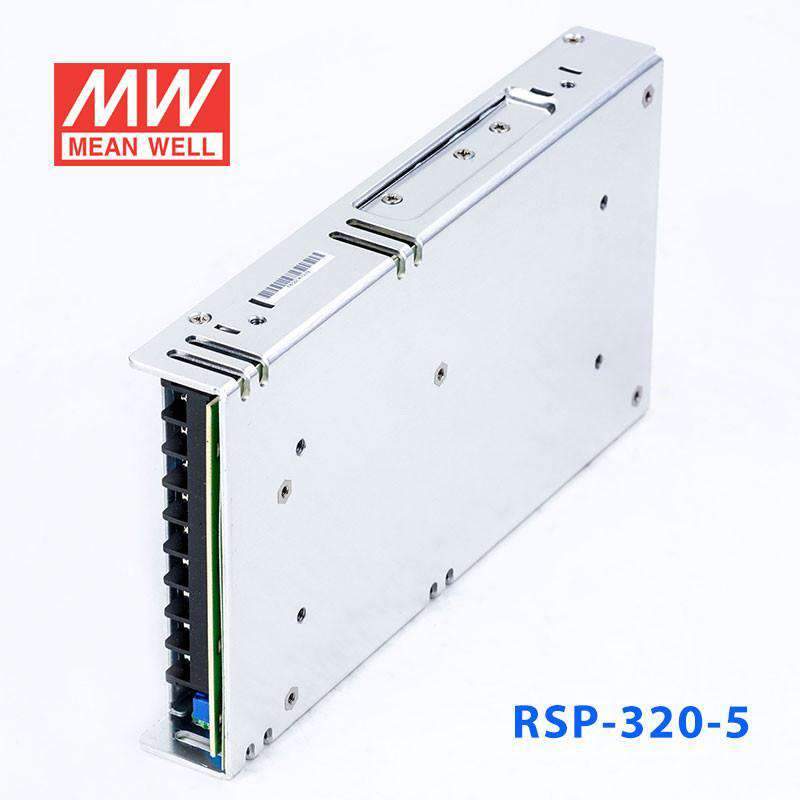

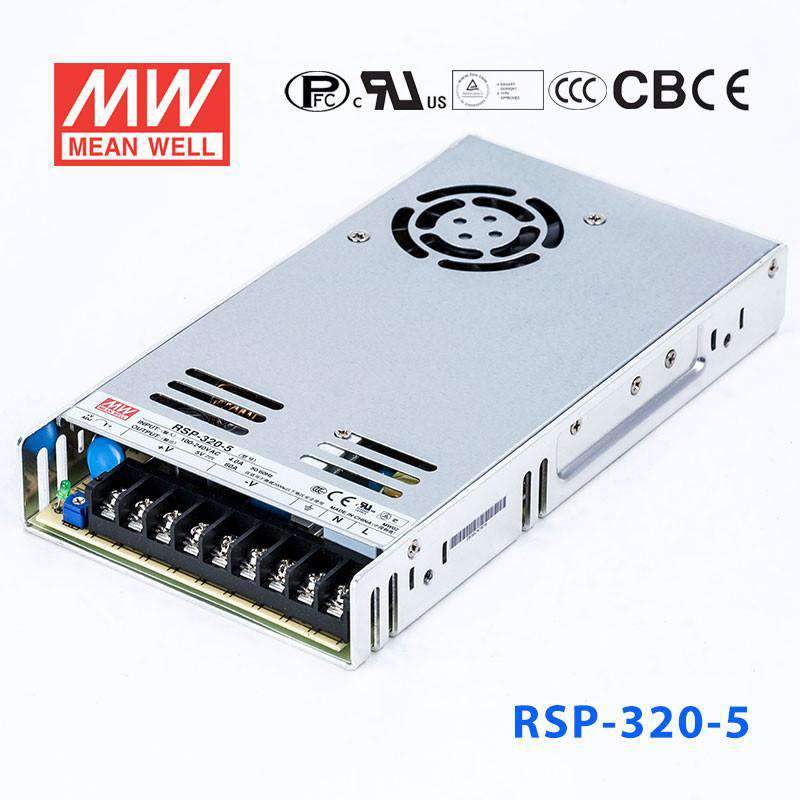

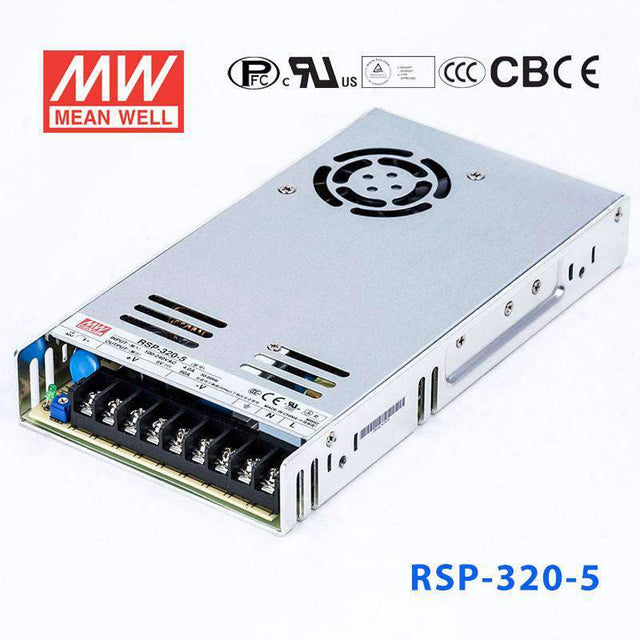

Mean Well RSP-320-5 Power Supply 300W 5V
$94.72 NZD
Unit price /
Description
Description
Features
| 1U low profile |
| Universal AC input / Full range |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Forced air cooling by built-in DC fan |
| LED indicator for power on |
| 3 years warranty |
General Specification
| AC input voltage range | 88~264VAC; 124~370VDC |
| AC inrush current (max.) | Cold start, 40A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 105%~135% |
| Overload protection Type | Hiccup mode, auto-recovery |
| Over voltage protection Range | 115%~145% |
| Over voltage protection Type | Shut down O/P voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1, CCC GB4943 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254 |

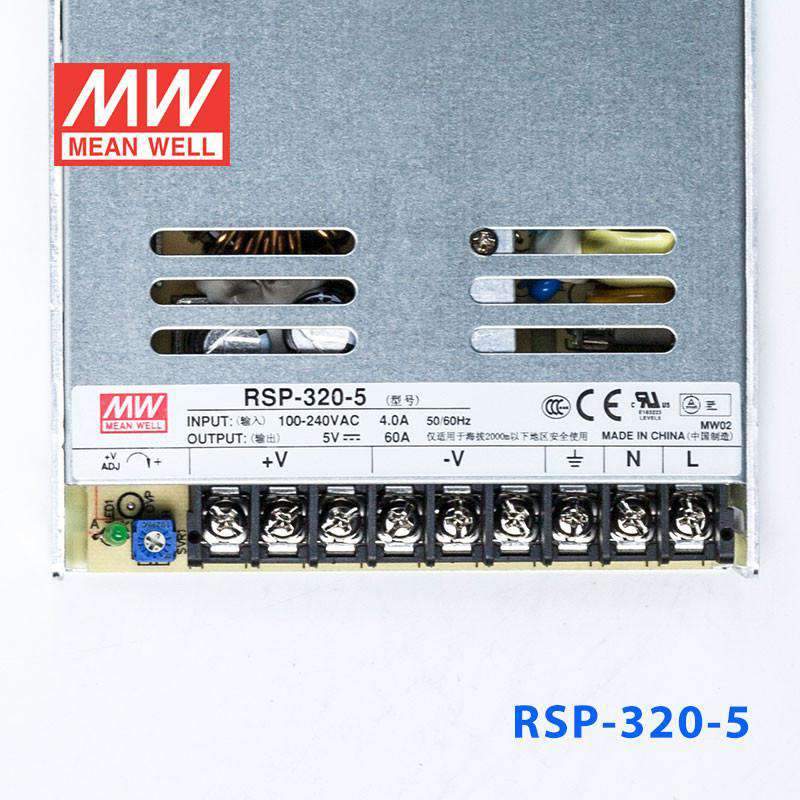

| Connection Input | 9P / 9.5mm pitch terminal block |
| Connection Output | 9P / 9.5mm pitch terminal block |
| Dimension (LxWxH) | 215x115x30 |
| Case No. | 207A |
Specifications
Specifications
-
Length215 mm
-
Width115 mm
-
Height30 mm
-
Weight0.9 kg
