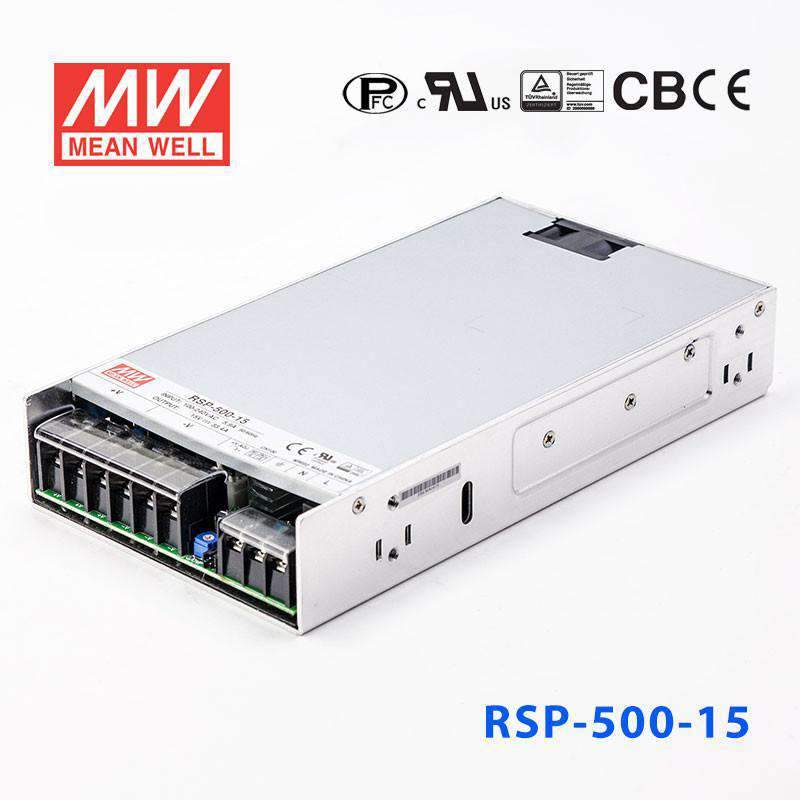

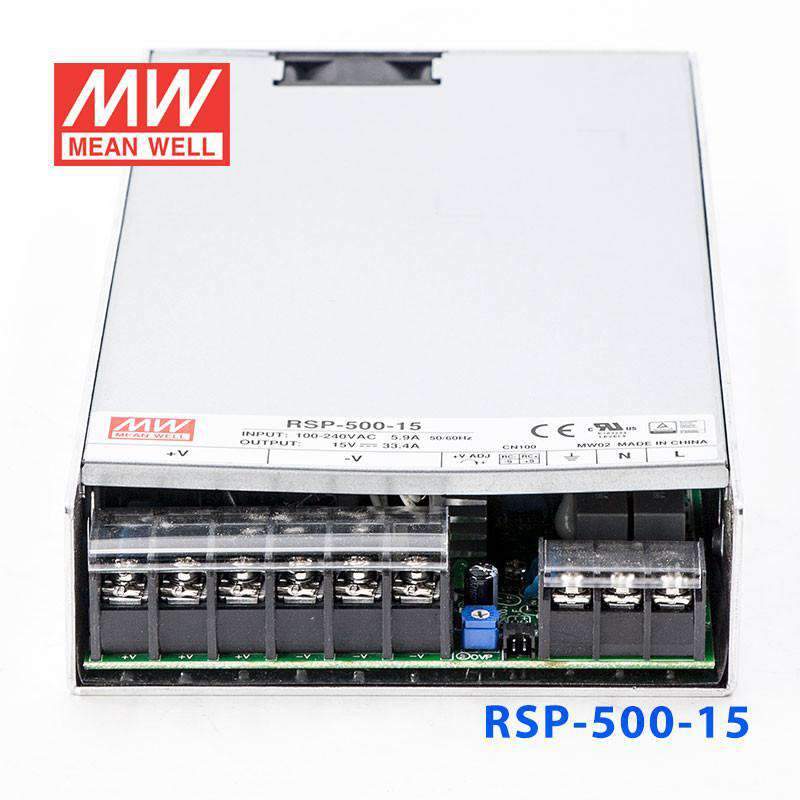

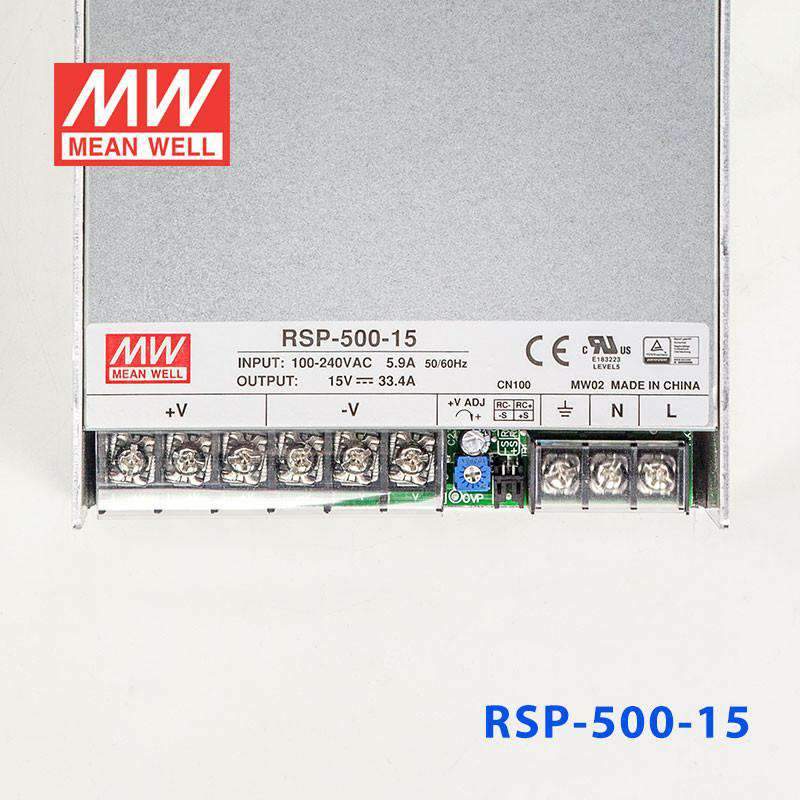

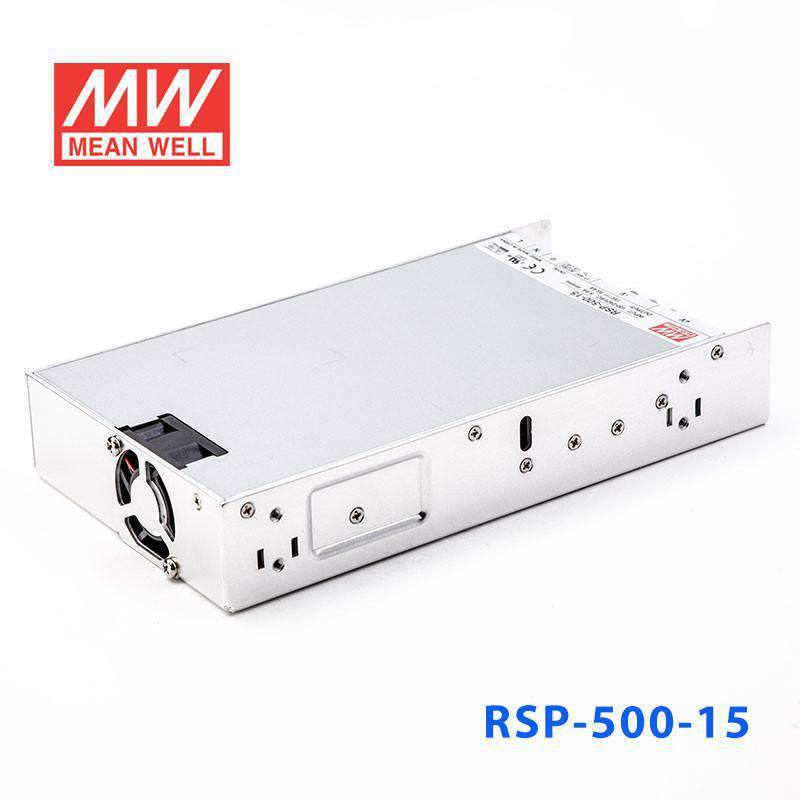

Mean Well RSP-500-15 Power Supply 500W 15V
$168.40 NZD
Unit price /
Description
Description
Features
| 1U low profile |
| Universal AC input / Full range |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Forced air cooling by built-in DC fan |
| LED indicator for power on |
| Built-in remote sense and ON/OFF control |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current (max.) | Cold start, 40A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 105%~130% |
| Overload protection Type | Constant current limiting, auto-recovery |
| Over voltage protection Range | 115%~145% |
| Over voltage protection Type | Shut down O/P voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1 (TUV / UL pending for RSP-500) |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 |
| Connection Input | 3P / 9.5mm pitch terminal block |
| Connection Output | 6P / 11mm pitch terminal block |
| Dimension (LxWxH) | 230x127x40.5 |
| Case No. | 226A |
Specifications
Specifications
-
Length230 mm
-
Width127 mm
-
Height40.5 mm
-
Weight1.3 kg
