Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

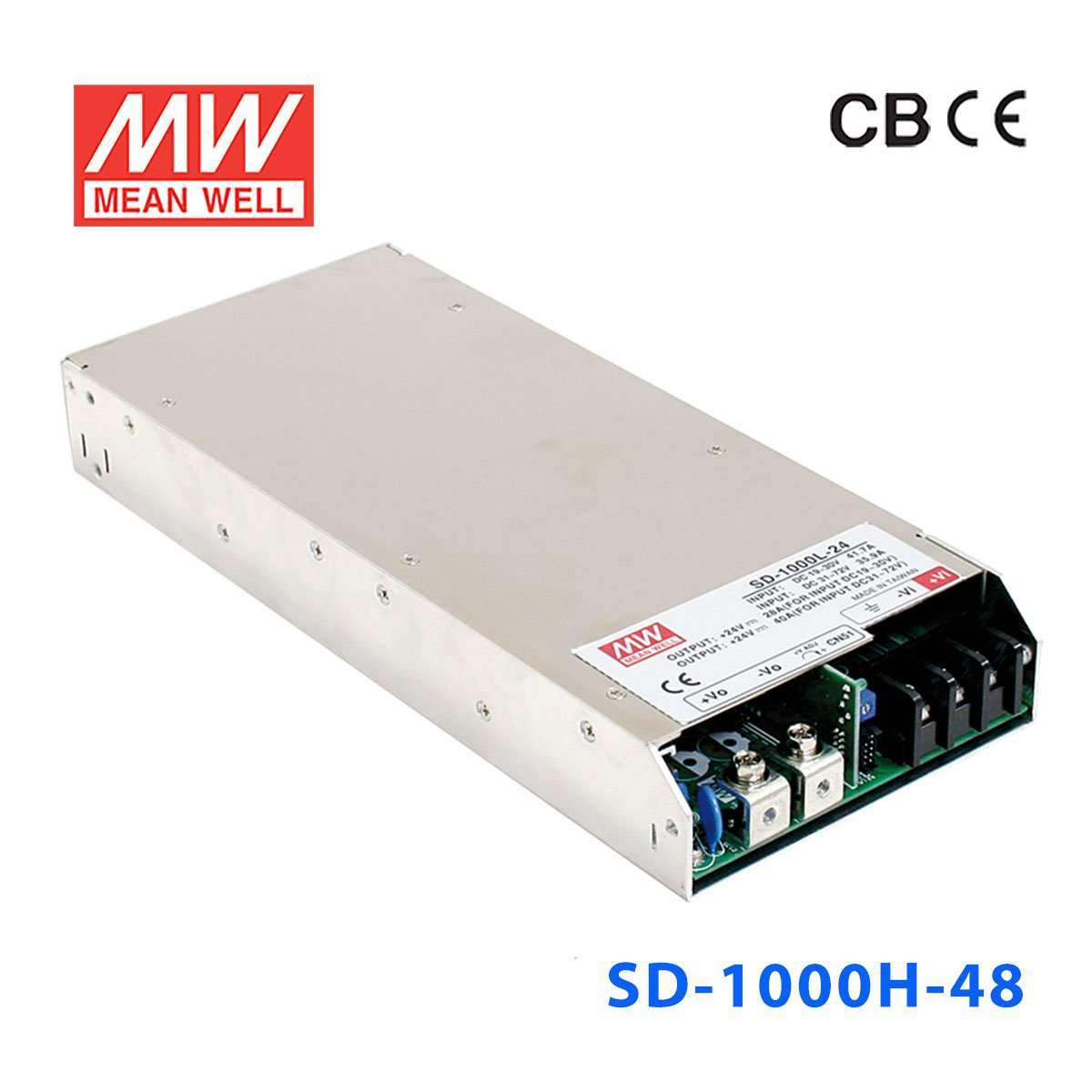

Mean Well SD-1000H-48 DC-DC Converter - 1000W - 72~144V in 48V out
4:1 wide input range, 1.5~2KVAC isolation by models, 12V/0.25A auxiliary output, built-in remote ON/OFF control and remote sense, 1U low profile
SKU:
SD-1000H-48
$565.07 NZD
Unit price /
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SD-1000H-48 DC-DC Converter - 1000W - 72~144V in 48V out
$565.07 NZD
Unit price /
Description
Description
Features : 1U low profile 41mm
· High power density 10.7w/inch3
· 2000VAC I/O Isolation
· Protections: Short circuit / Overload / Over voltage / Over temperature
· Output OK signal
· Built-in remote ON-OFF control
· Built-in remote sense function
· Forced air cooling by built-in DC fan with fan speed control
· 12V, 0.25A auxiliary output
· 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSD Series
-
Power Rating1008 Watt
-
Output Voltage48 Volt
-
Rated Current21 Ampere
-
Input Voltage72V~144V
-
No of Output1
-
Dimming ControlNone
-
Standards MetEAC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length295 mm
-
Width127 mm
-
Height41 mm
-
Weight1.94 kg
File Downloads
File Downloads
::specification::
