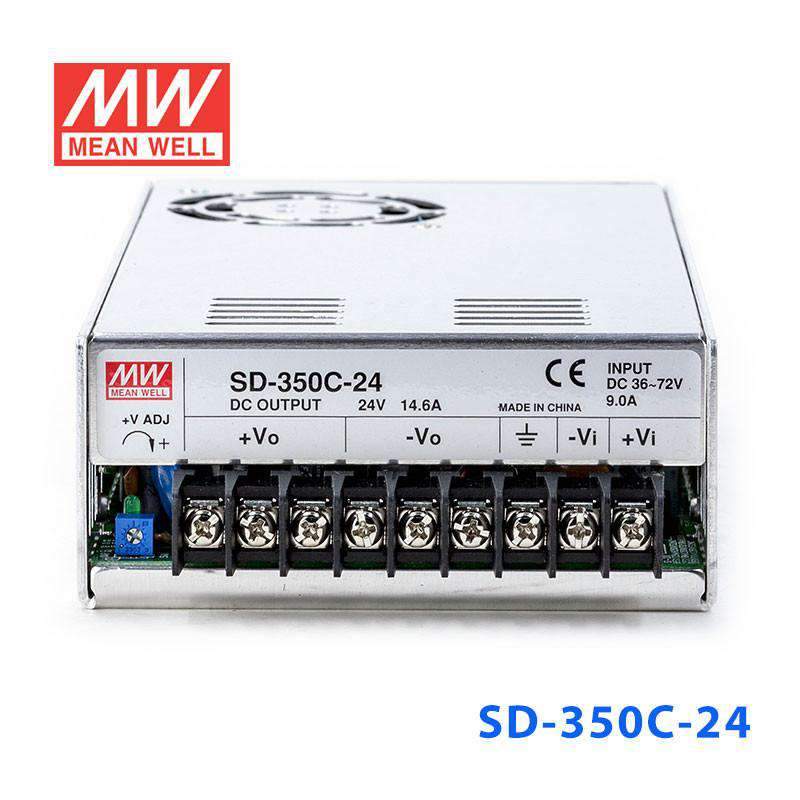

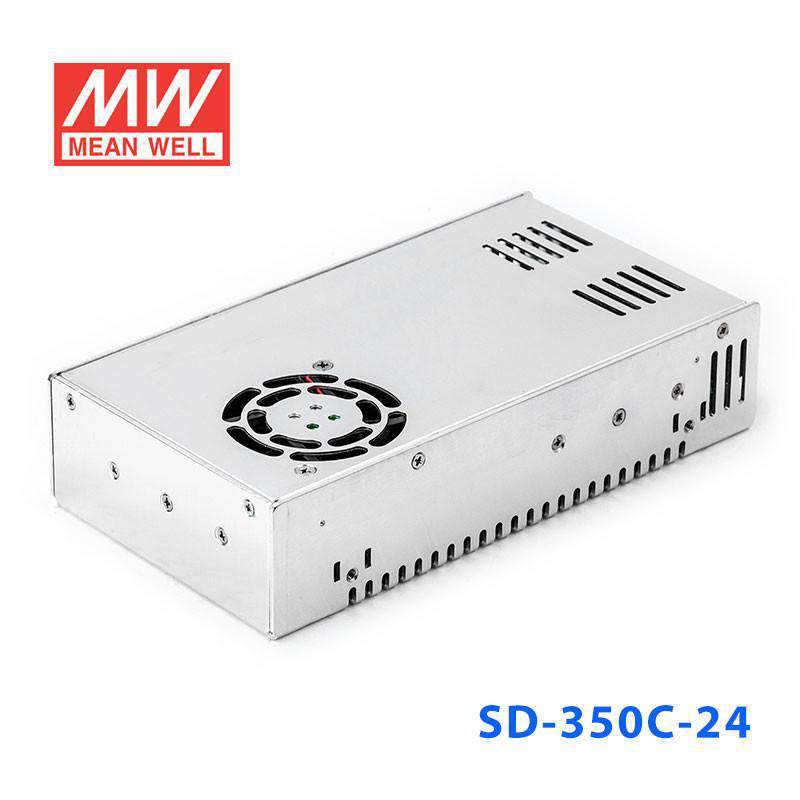

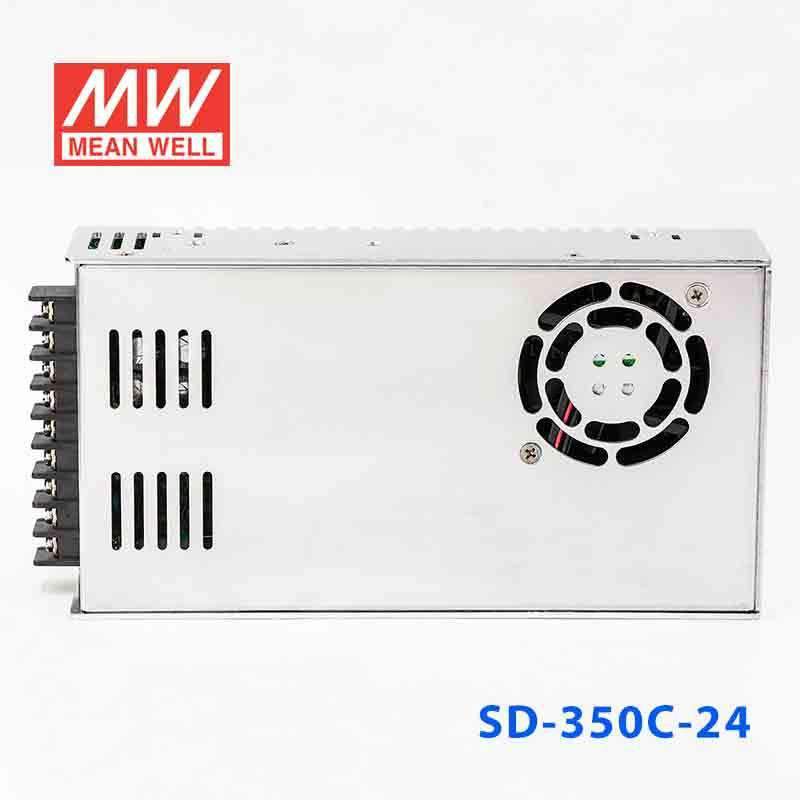

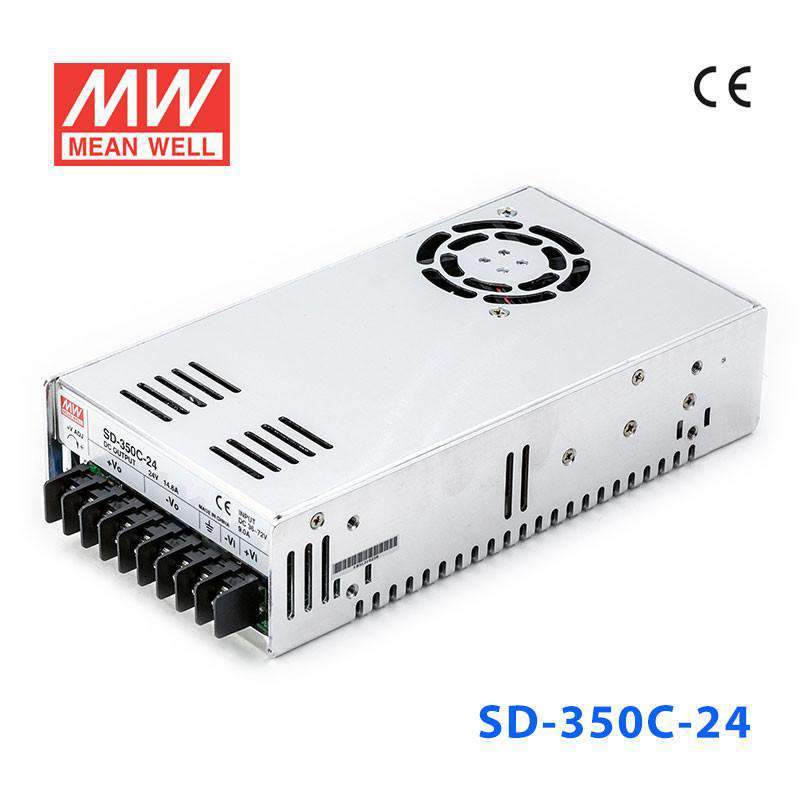

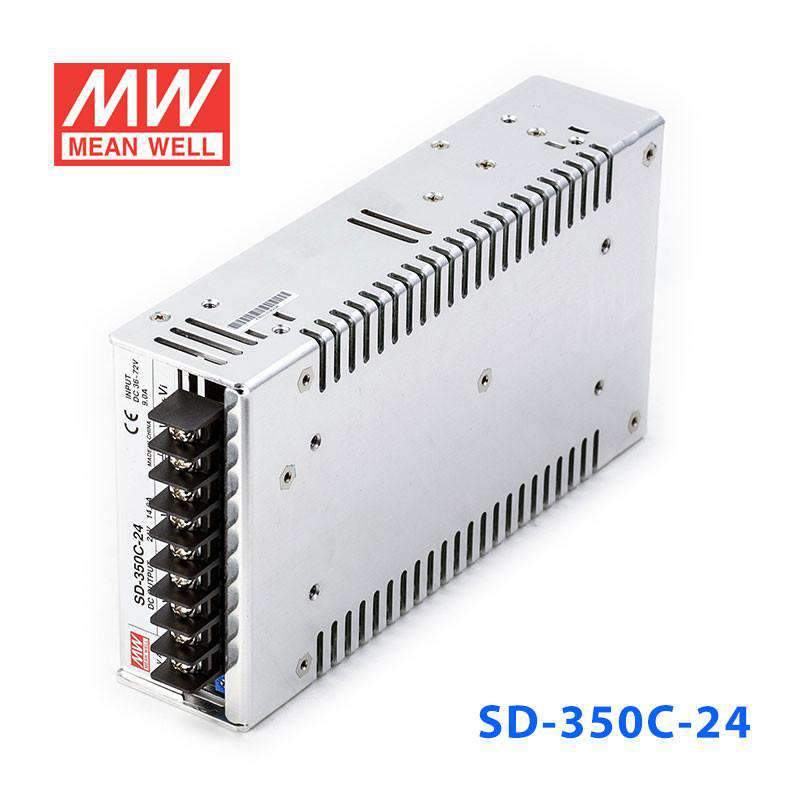

Mean Well SD-350C-24 DC-DC Converter - 350W - 36~72V in 24V out
$202.11 NZD
Unit price /
Description
Description
· 2:1 wide input
range
· Protections:
Short circuit / Overload / Over voltage / Over
temperature
· 1500VAC I/O
isolation
· Forced air
cooling by built-in DC Fan
· 100% full load
burn-in test
· 24V and 48V
input voltage design refer to LVD
· 2 years
warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSD Series
-
Power Rating350.4 Watt
-
Output Voltage24 Volt
-
Rated Current14.6 Ampere
-
Input Voltage36V~72V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length215 mm
-
Width115 mm
-
Height50 mm
-
Weight1.1 kg
