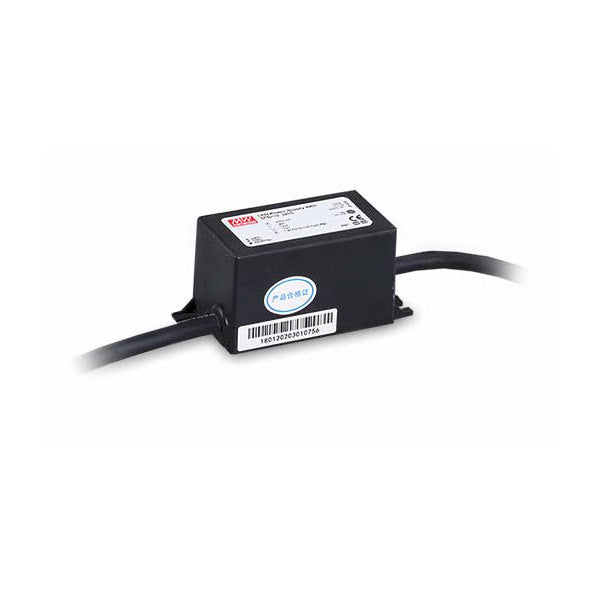

Mean Well SPD-10-320S Surge Protection Device 120~320VAC 10KV
10/20kA surge protection device, line to ground and line to line protected, IP66/67 design for indoor and outdoor installations
SKU:
SPD-10-320S
$18.37 NZD
Unit price /
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SPD-10-320S Surge Protection Device 120~320VAC 10KV
$18.37 NZD
Unit price /
Description
Description
Features
| Series connection style |
| The line to Ground&Line to Line Protected |
| 10kA maximum discharge current(Imax), 8/20μ |
| Thermal protected |
| Double insulation cable wire |
| LED status indicator |
| IP67 design for indoor or outdoor installations |
| Suitable for LED driver surge protection with class I insulation |
| 10kV surge protection capability |
General Specification
| MCOV | 320VAC |
| UC | 320VAC |
| LED indicator | Illuminate when on, off when need servicing |
| Imax | 10kA, 8/20μs |
| Working temperature | -40~+70ºC |
| Compliance to IEC61643-11: 2011, IEC61000-4-5: 2005 | UL1449 |
| Response time | <25ns |
| Case No | SPD-20A |
| Dimension (LxWxH) (mm) | 85 x 37 x 40 |
| Packing | 0.16Kg/Unit ; 10Kg/carton(60pcs) |
Specifications
Specifications
-
BrandMean Well
-
SeriesSPD
-
Input Voltage120V~320V
-
Standards MetCE
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length85 mm
-
Width40 mm
-
Height37 mm
-
Weight0.16 kg
