Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

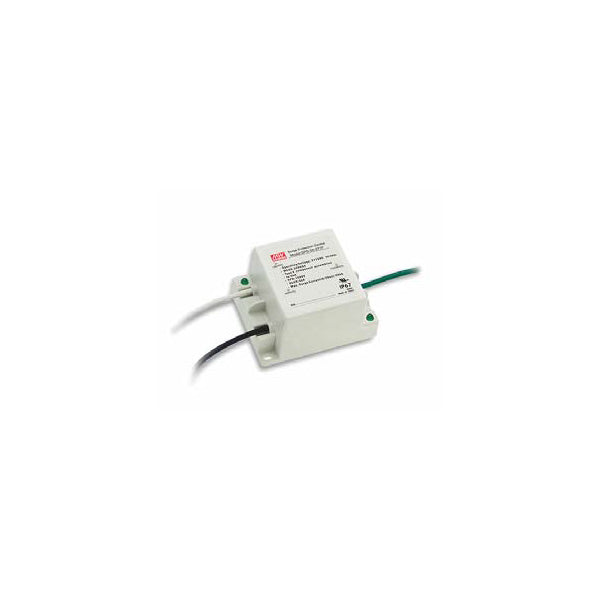

Mean Well SPD-20-240P Surge Protection Device 277VAC 10KV
10/20kA surge protection device, line to ground and line to line protected, IP66/67 design for indoor and outdoor installations
SKU:
SPD-20-277P
$53.39 NZD
Unit price /
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SPD-20-240P Surge Protection Device 277VAC 10KV
$53.39 NZD
Unit price /
Description
Description
Features
| type 2 component assemblies |
| The line to Ground&Line to Line Protected |
| Parallel(3 wires) connection style |
| LED status indicator |
| Suitable for LED driver surge protection |
| IP67 design for indoor or outdoor installations |
| 10kV surge protection capability |
General Specification
| MCOV | 300VAC |
| UC | 300VAC |
| LED indicator | Illuminate when on, off when need servicing |
| Imax | 20kA |
| Working temperature | -40~+70ºC |
| Compliance to IEC61643-11: 2011, IEC61000-4-5: 2005 | UL1449 |
| Response time | <25ns |
| Case No | SPD-20A |
| Dimension (LxWxH) (mm) | 90 x 70 x 50mm |
| Packing | 0.39Kg; 18pcs/8Kg/0.84CUF |
Specifications
Specifications
-
BrandMean Well
-
SeriesSPD
-
Input Voltage277V~320V
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length90 mm
-
Width70 mm
-
Height50 mm
-
Weight0.39 kg
File Downloads
File Downloads
::specification::
