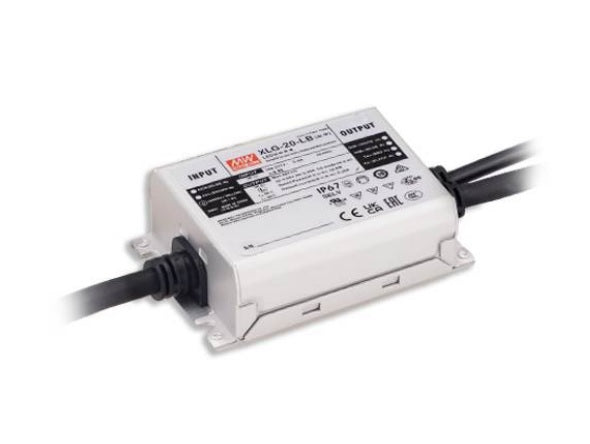

Mean Well XLG-20-H 21W 700mA 18-30V Constant Current LED Driver
$26.47 NZD
Unit price /
Description
Description
Features
| Constant Current mode output(Class I) |
| Wide input range 100~305VAC |
| Built-in active PFC function |
| Class 2 power unit |
| No-load power consumption <0.5W |
| IP67 rating for indoor or outdoor installations |
| 3 in-1 dimming function (Isolation design) |
| Lifetime > 50,000 hrs |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC |
| AC inrush current | Cold start, 50A at 230VAC |
| Setup, rise, hold up time | 500ms, 100ms, 12ms |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC |
| Working temperature | -40~+80°C |
| Safety standards | BS EN/EN62384; UL8750 approved; EAC TP TC 004 |
| EMC standards | EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 |
| Dimension (LxWxH) | 95x63x30 |
| Packing | 24pcs / 8.67kg |
Specifications
Specifications
-
Length95 mm
-
Width63 mm
-
Height30 mm
-
Weight0.34 kg
