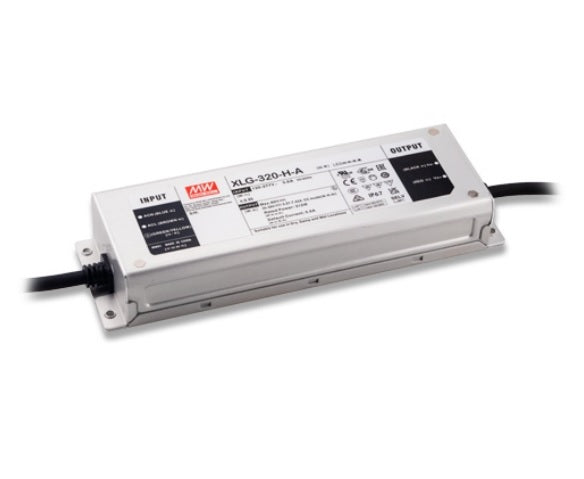

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well XLG-320-V-A Power Supply 312W 24V or 216W 12V - Switchabl...
$112.26 NZD
Unit price /
Description
Description
Features
| Wide input range 100~305VAC (Class I) |
| Full power output at 70~100% constant power mode operation |
| Metal case with IP67, suitable for outdoor application |
| Surge protection with 6KV/4KV |
| 3 in 1 dimming function (Dim to off and isolation design) |
| Protection functions: OVP/SCP/OCP/OTP |
| Lifetime > 50,000 hrs. and 5 years warranty |
General Specification
| AC input voltage range | 100~305VAC;142~431VDC |
| AC inrush current | Cold start, 45A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Over-voltage protection | 102%~111% rated output voltage |
| Setup, rise, hold up time | 500ms, 100ms, 12ms |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC |
| Working temperature | -40~+85°C |
| Safety standards | UL8750 approved; ENEC BS EN/EN61347-1; EAC TP TC 004; NOM-058-SCFI-2017; IP67 approved |
| EMC standards | EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 |
| Dimension (LxWxH) | 246x77x39.5 |
| Packing | 9pcs / 14kg |
Specifications
Specifications
-
Length246 mm
-
Width77 mm
-
Height39.5 mm
-
Weight1.45 kg
File Downloads
File Downloads
::specification::
